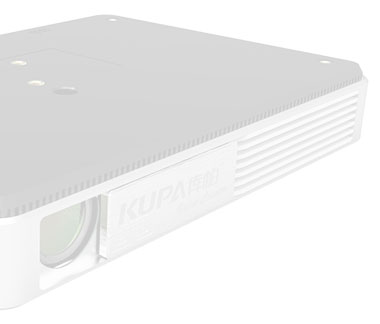

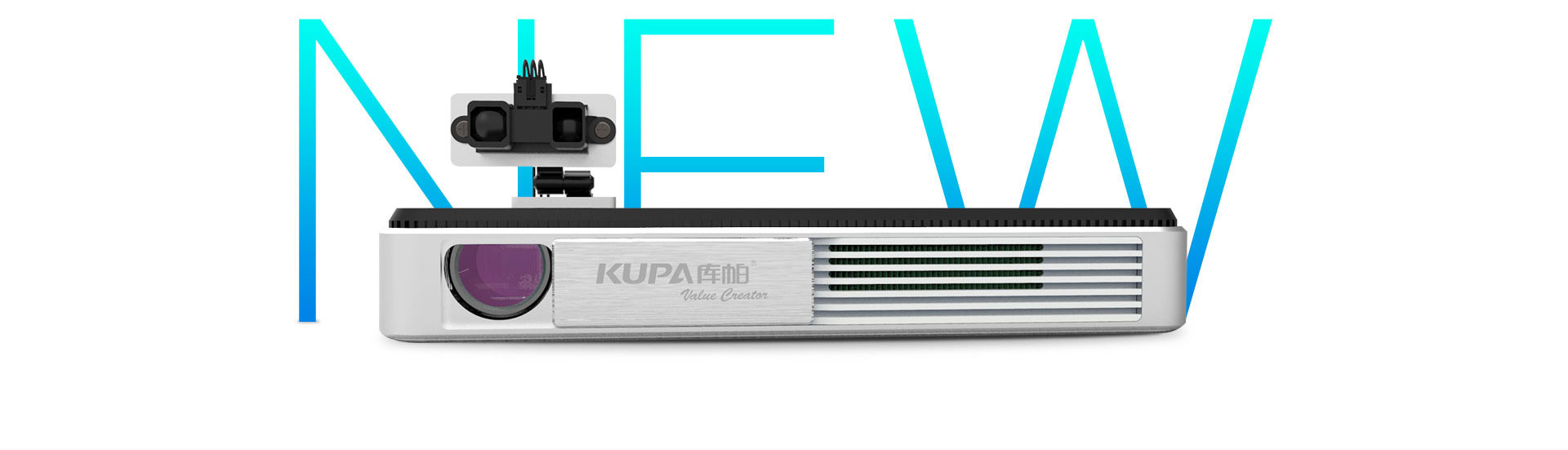

KUPA W10 Elevator Advertising Projector

The interactive advertisement display for elevator or spare space

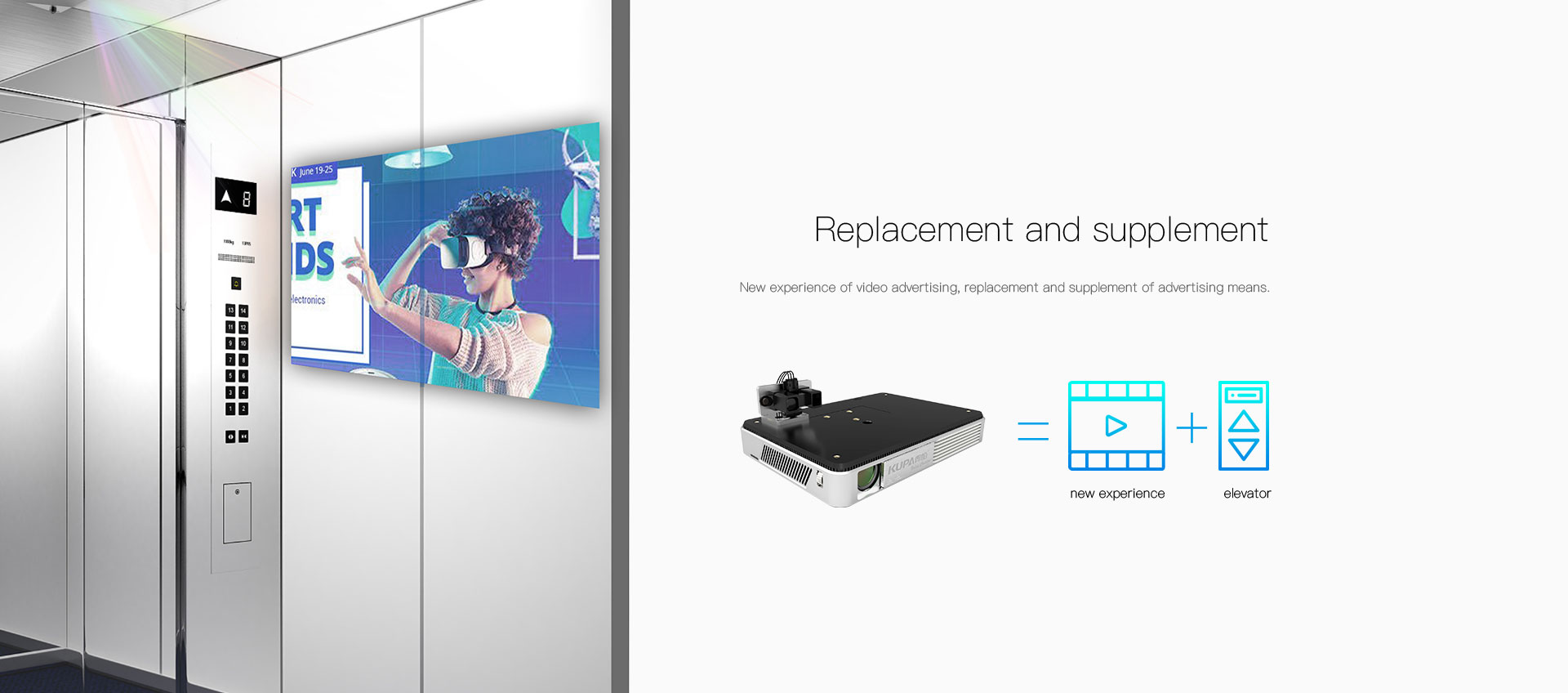

KUPA W10 elevator advertising projector adopts optic interactive technology to realize the advertisment presentation in particular environment. As the display carrier and source of advertising, it installs Android or Windows system, supports picture and video advertising. Based on built-in interactive module, W10 detects the status of elevator door switch, then controls the advertisement display and transform the spare space into a interactive visualization scene. Moreover, we also accept customization or demand application.

Proflie/Application W10 Elevator AD Projector
Display Type DMD TI 0.3",720
Light Source RGB-LED ,Germany Osram LED light source
LED Lamp Life ≥30000Hours
Resolution 1280*720
Brightness 300ANSI Lumens
Contrast 10000:1
Throw Distance 38", 21m
Throw Ratio 1.2
Projection Method Front, rear, ceiling mount, table top
CPU ARM Cortex-A7,4 Cores
Operating System Android 4.4
Memory 1GB
Hard Dsik 8GB
WIFI Support 802.11 a/b/g/n Wireless Network
Interface Micro SD*1
Security Keylock*1
Button Power Switch*1
Video Format Support 4K Video source

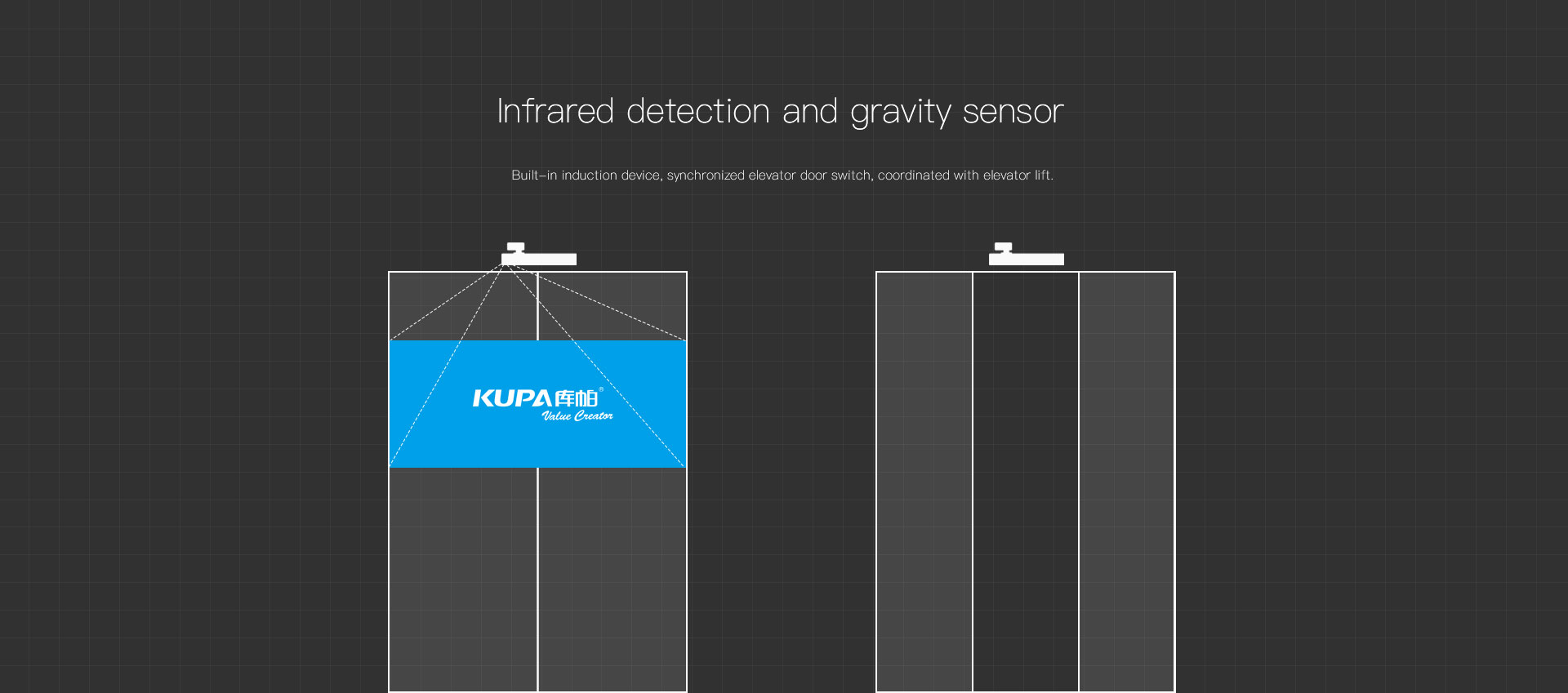

Detection Module Switch door infrared detection
Projector Size 172*124*26.8mm
Item Weight 700g
DC Input 12V/3A
Standard Parts DC Power Cord,Remote Control,User Manual

Where to buy ?

Contact us.


  • Certain functionality is only available through KUPA official software.

  • Hoisting projectors must be hoisted on solid and fixed walls, the wall material excluding glass, porcelain, foam, etc.

  • Be sure to avoid pressing infrared sensor cameras when handling machines, the projection accuracy of the interaction might be effected for this.

  • The elevator projector needs to be equipped with two special projection screens, paste them on the elevator door for projection.
