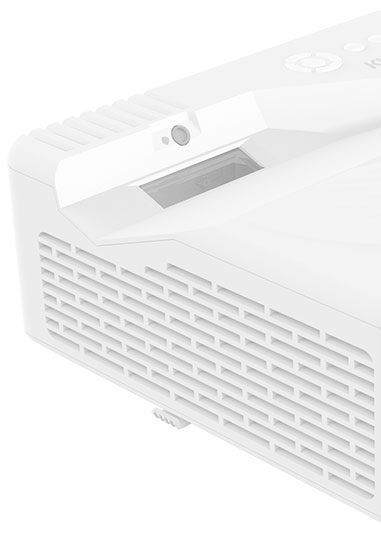

KUPA P6 Ultra Short-throw Interactive Laser Projector with All in one PC
The Full HD ultra short-throw interactive laser display for learning or business environment
Transform your space into a collaborative learning venue with touch-enabled , Full HD ultra short-throw interactive display. Offering Full HD images with 3,600 lumens of color and white brightness, the P6 delivers dynamic images up to 150 inches. Turn almost any wall or existing whiteboard into an interactive workspace with pen-and touch-based interactivity — up to 10 pens or 10 users at one time. The integrative projector with PC, speakers, BT4.0, WiFi and wired network, P6 just provides a stunning resolution for teaching or business environment. We accept customization or demand application.
| Profile | |||
|---|---|---|---|
| Application | Ideal for education，business and so on | ||
| Condition | MP（mass production） | ||
| Model number | LA-KP6L36XH | LA-KP6L36WH | LA-KP6L36FH |
|---|---|---|---|
| Porjection Type | DMD，XGA，0.55″ | DMD，WXGA，0.65″ | DMD，1080P，0.65″ |
| Light Source | Blue Laser | Blue Laser | Blue Laser |
| Light Source Power | 70W | 70W | 70W |
| Laser Lamp Life | ≥20000 Hours | ≥20000 Hours | ≥20000 Hours |
| Resolution | 1024*768 | 1280*800 | 1920*1080 |
| Brightness | 3200 Lumens | 3600 Lumens | 3600 Lumens |
| Contrast | 40000:1 | 40000:1 | 40000:1 |
| Throw Ratio | 0.23：1 | 0.23：1 | 0.23：1 |
| Reflector | Built-in | Built-in | Built-in |
| Brightness Uniformity | ＞90% | ＞90% | ＞90% |
| Projection Method | Front, rear, ceiling mount, wall mount,table top | ||
| Specifications | |||
|---|---|---|---|
| CPU | Intel Kabylake-U i3/i5/i7 | ||
| Operating System | Windows7 / Windows10 | ||
| Memory | 4GB （8GB optional） | ||
| Hard Dsik | 128GB SSD （64GB/256GB SSD Optional） | ||
| Wired Network | Support Gigabit Cable Network | ||
| WIFI | Support 802.11 a/b/g/n Wireless Network | ||
| Bluetooth | BT4.0 | ||
| Input | |||
|---|---|---|---|
| Input | USB3.0*4 | ||
| HDMI *1 | |||
| VGA*2 | |||
| RJ-45*2 | |||
| S-Video*1 | |||
| AUDIO*1 | |||
| AV*1（Video Yellow，R-CH Red，L-CH White） | |||
| AC-IN*1 | |||
| Brightness Uniformity | VGA*1 | ||
| AUDIO*1 | |||
| USB-5V Power Supply*1 | |||
| Controller Interfa | RS232 D-sub 9-pin*1 | ||
| Mini USB*1 | |||
| Push-Button | Power Switch*1，Signal Selection*1，Menu*1，Up*1，Down*1，Left*1，Right*1，OK*1 | ||
| Interactive function | |||
|---|---|---|---|
| Handwriting | Built-in，Support infrared pen or direct handwriting | ||
| Others | |||
|---|---|---|---|
| Speakers | Embedded Speaker*1 | ||
| Screen Features | 3D Mode(Full HD 3D,Up/Down,Right/Left,Frame Sequential,Field sequence,Left and right eye swaps) | ||
| Standard Power Dissipation | ≦260W | ||
| Minimum Power Dissipation | ≦0.5W | ||
| Audible Noise | ﹤35db | ||
| Work Temperature | 0-35℃ | ||
| Work Humidity | 10%-80% | ||
| Projector Size | 380mm*360mm*161mm | ||
| Item Weight | ≦9kg | ||
| AC Input | 100V-240V,50Hz/60Hz | ||
| Standard Parts | AC Power Cord,Remote Control,User Manual | ||
Where to buy ?
Precision integration of multiple devices
Full HD laser projector,high performance processor,solid state hard disk and wireless WIFI precision integrated design.
Notes
To ensure fluency of screen interaction, it is suggested that the projection size should be controlled within 150 inches.
Certain functionality is only available through KUPA official software.
Hoisting projectors must be hoisted on solid and fixed walls, the wall material excluding glass, porcelain, foam, etc.
Be sure to avoid pressing infrared sensor cameras when handling machines, the projection accuracy of the interaction might be effected for this.
